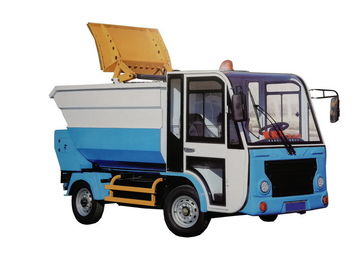

Four Wheeler Electric Garbage Truck / Large Capacity Electric Waste Trucks
Product Application
Electric Garbage Truck is a brand new zero-emission pure electric garbage collector, which is made of the chassis of the automobile with the frame and crossbeam riveted as a whole. The car adopts panoramic cab, rear hanging bucket turning device and pushing and pressing device, the performance is ahead of the domestic similar products, the appearance of the car is fashionable and simple, simple operation, flexible operation, low noise.
Electric Garbage Truck is a professional new energy equipment specially designed for urban environmental sanitation. It is widely used in high-end residential areas, cleaning properties, resorts, factories, industrial parks, campuses, scenic spots and other public places, providing them with an efficient, low-noise, green and environment-friendly cleaning method.
Electric Garbage Truck Parameters
|
Specification for Electric Garbage Truck
|
|||
|
No.
|
Item
|
Unit
|
Parameter
|
|
1
|
Dimension
|
mm
|
4200×1480×2100
|
|
2
|
Passenger
|
People
|
2
|
|
3
|
Maximum speed
|
km/h
|
≤24
|
|
4
|
Minimum turning radius
|
m
|
5.2
|
|
5
|
Mileage
|
km
|
80-100
|
|
6
|
braking ability
|
m
|
4
|
|
7
|
Front wheelbase/rear wheelbase
|
mm
|
1200/1200
|
|
8
|
Wheelbase
|
mm
|
2150
|
|
9
|
Tire size
|
|
175R13
|
|
10
|
Minimum ground clearance
|
mm
|
190
|
|
11
|
Maximum climb
|
%
|
20
|
|
12
|
Travelling motor power
|
kw
|
5
|
|
13
|
Oil pump motor power
|
kw
|
1.3
|
|
14
|
Battery
|
kwh
|
15.12
|
|
15
|
Grey box capacity
|
m3
|
3
|
|
16
|
Loading trash can specification
|
L
|
120/240
|
|
17
|
Machine weight
|
kg
|
2040
|
|
18
|
Rated load
|
kg
|
1500
|
|
19
|
Lithium battery
|
V
|
48
|
Electric Garbage Truck Advantage
Loading and unloading of convenient
Adopt rear hanging bucket turning device, reduce working width and operate flexibly. After each bucket turning, the hydraulic push plate can push the dumped garbage and compaction to the front of the garbage box, improve the load of the box and ensure the smooth loading of the rear crane.
Strong power
The vehicle adopts lightweight design and USES 48-v lithium battery for power, energy saving and environmental protection, with longer driving range.
Large loading capacity
The ash box is made of stainless steel, with a capacity of 3 cubic meters and a rated load of 1.5 tons. Small garbage feeding port is set on the side of the ash box, which is convenient for manual throwing.
Real-time operational monitoring
The vehicle control system adopts single chip microcomputer control, resistance type accelerator, with anti-electromagnetic interference, anti-flying, start delay and reverse deceleration, electronic anti-slip slope and other safety functions
Safe and reliable
The rear part of the vehicle is equipped with a ground support oil cylinder, which can support the stability of the vehicle when the garbage collection and transport box is dumped as a whole, thus making the garbage collection and transport box with large capacity dump more safely.
Elegant and beautiful
Cab glass adopts hyperboloid streamlined design. Automobile spray painting technology, automobile tempered glass, the whole car elegant and beautiful.
Easy to maintenance
The vehicle layout is reasonable, the box can be lifted, the two sides of the decorative plate is set up access doors, motors, controllers, transmission, fans and other daily maintenance points have enough maintenance space, so that the customer's daily maintenance is very convenient.
Wide range of adaptation
Strong suction, good cleaning effect. Short wheelbase, small turning radius, widely used in municipal sanitation, cleaning property, industrial parks, campus cleaning operations.
Full protection
In order to protect the safety of human body, key machinery and electrical parts, protection measures are fully considered in the design. Even if the operation is not intentional, there will be no harm to the equipment. Relevant warning and warning signs are posted on obvious parts of the vehicle, and the reversing image is set on the main control platform of the cab to ensure the safety of operation and operation.
Details
